CageWRX Super Shorty Cage Kit – Yamaha YXZ 1000R

Description

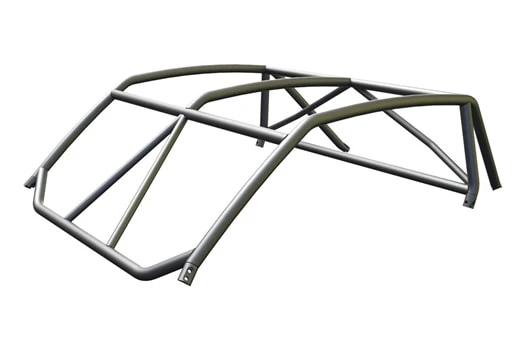

CageWRX Super Shorty Cage Kit – Yamaha YXZ 1000R

Ready-to-weld Roll Cage Kit for Yamaha®YXZ1000R (2015+)

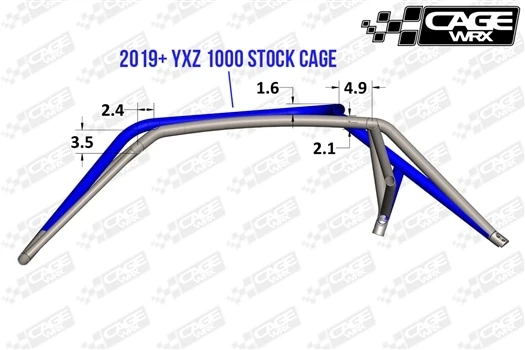

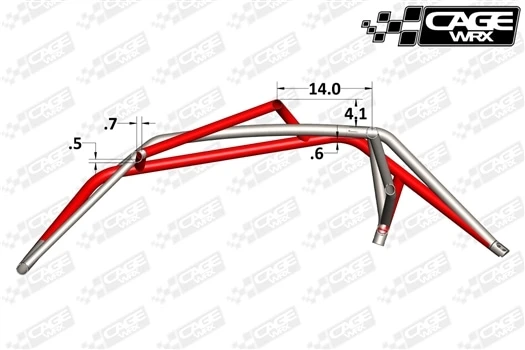

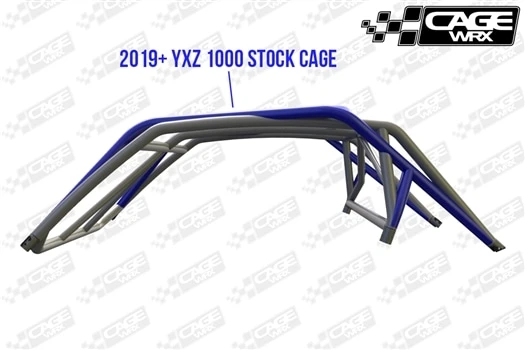

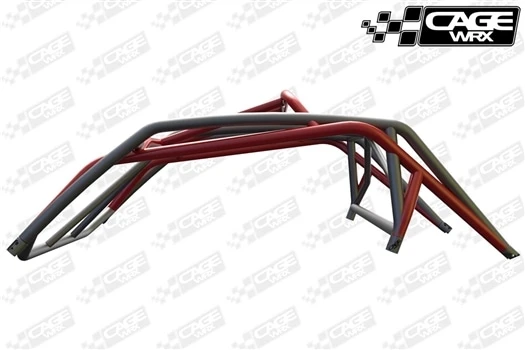

Our clean, laid-back design of the Yamaha® YXZ1000R roll cage kit gives you a slimmed-down profile that will turn heads. This Super Shorty roll cage utilizes a very slight radius roofline that is overall lower than the stock cage, giving your UTV an improved look and strength where you need it. All tubes are DOM steel, mandrel bent, and laser cut for an exact fit, and tube junctions are keyed to aid in the assembly. Six stock mounting locations are used, and all chassis clamps are included. The YXZ 1000R Super Shorty Cage Kit can be assembled and welded on the chassis without the need for a separate fixture, and no grinding or other work is required. Drivers 6’2″ and under should fit with helmet and have headroom to spare.



Features:

• Fits Yamaha YXZ1000R UTV (2015+)
• High-grade DOM steel
• 1.75″ diameter main tubes – 1.25″ diameter inner tubes
• .095″ wall thickness on all tubes
• Mounts to all six stock locations
• 81 lbs. complete cage weight
• ROOF NOT INCLUDED IN KIT



What’s In The Box?

• 12 Laser notched DOM steel tubes with tab and slot design for easy positioning of tubes
• 6 Billet tube ends (chassis clamps or bungs)
• 2 Whip mounts
