Warrior Winches Warrior Ninja 4500 Synthetic Winch C4500N-SR

Description

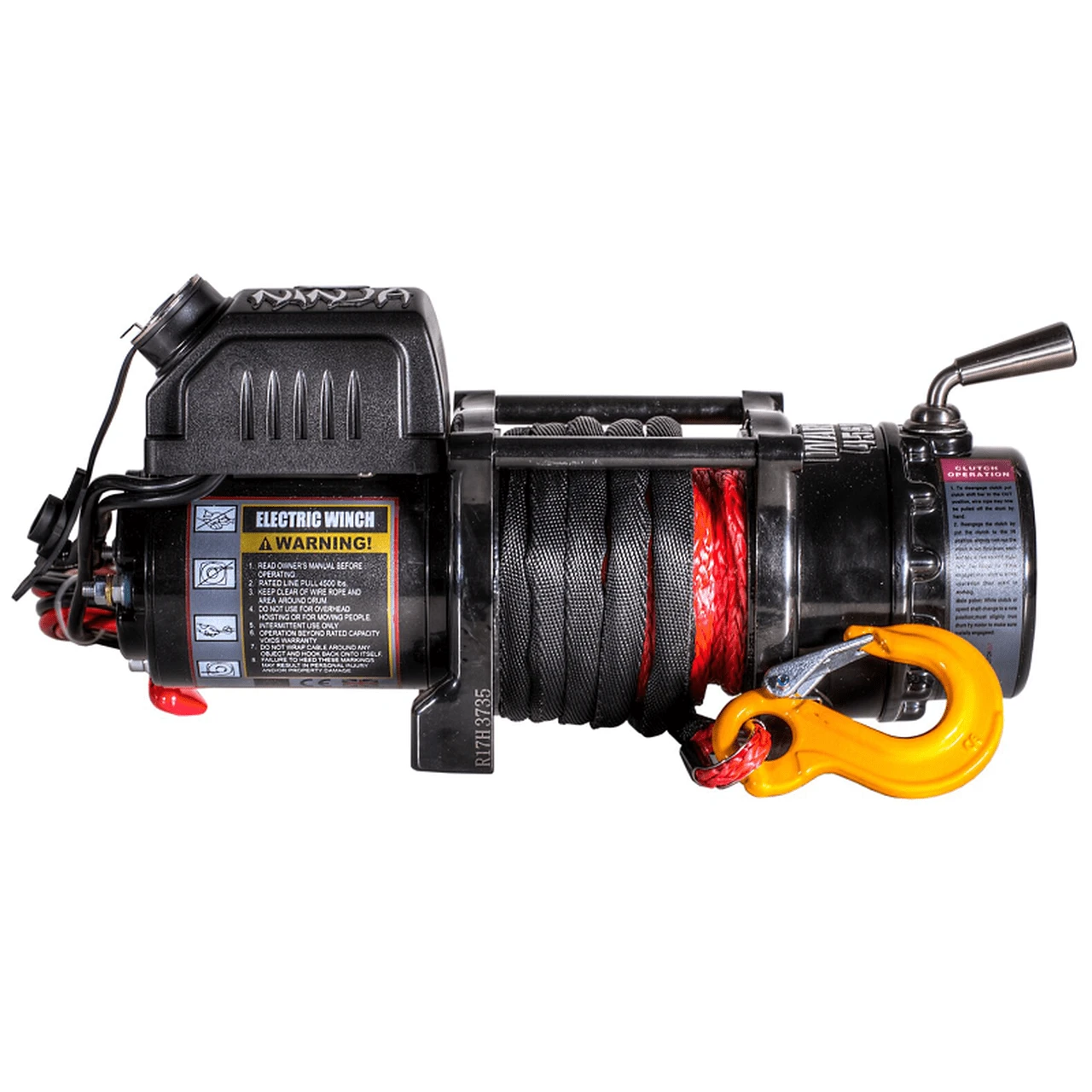

Warrior Ninja 4500 Synthetic Winch C4500N-SR

High quality three stage planetary gearing ensure this is one of the quietest and smoothest winches on the market. The silky smooth performance and the full load holding brake make it the perfect solution for high spec applications.

OUTSTANDING FEATURES

• Power in and Power out
• High Torque 1.95hp Motor
• HD Waterproof Contactors
• Full Steel Planetary Gearing
• Mount Plate as Standard
• Full Load Holding Break
• Can fit tow ball mount

Rated Line Pull	4500 lbs (2041 kg)
Motor	12v : 1.95hp / 1.37kw
Gearing	172:1
Braking Action	Auto in the drum
Drum Size Dia x L	45 x 97mm
Cable Dia x L	6mm x 15m
Dimensions	360 x 126 x 165mm
Weight	13kg
Mounting Pattern	129 x 96mm
Certification	CE

Layer of Wire Rope	Line Pull lbs (kgs)
1	4500 (2041)
2	3642 (1652)
3	3060 (1388)
4	2638 (1196)

Line Pull lbs (kgs)	Line Speed ft/min (m/min)	Amp Draw 12v	Amp Draw 24v
0	11.6 (3.6)	20	15
1500 (680)	9.2 (2.8)	70	40
2500 (1134)	7.8 (2.4)	100	65
3500 (1587)	6.6 (2.0)	140	80
4500 (2041)	4.9 (1.5)	200	130

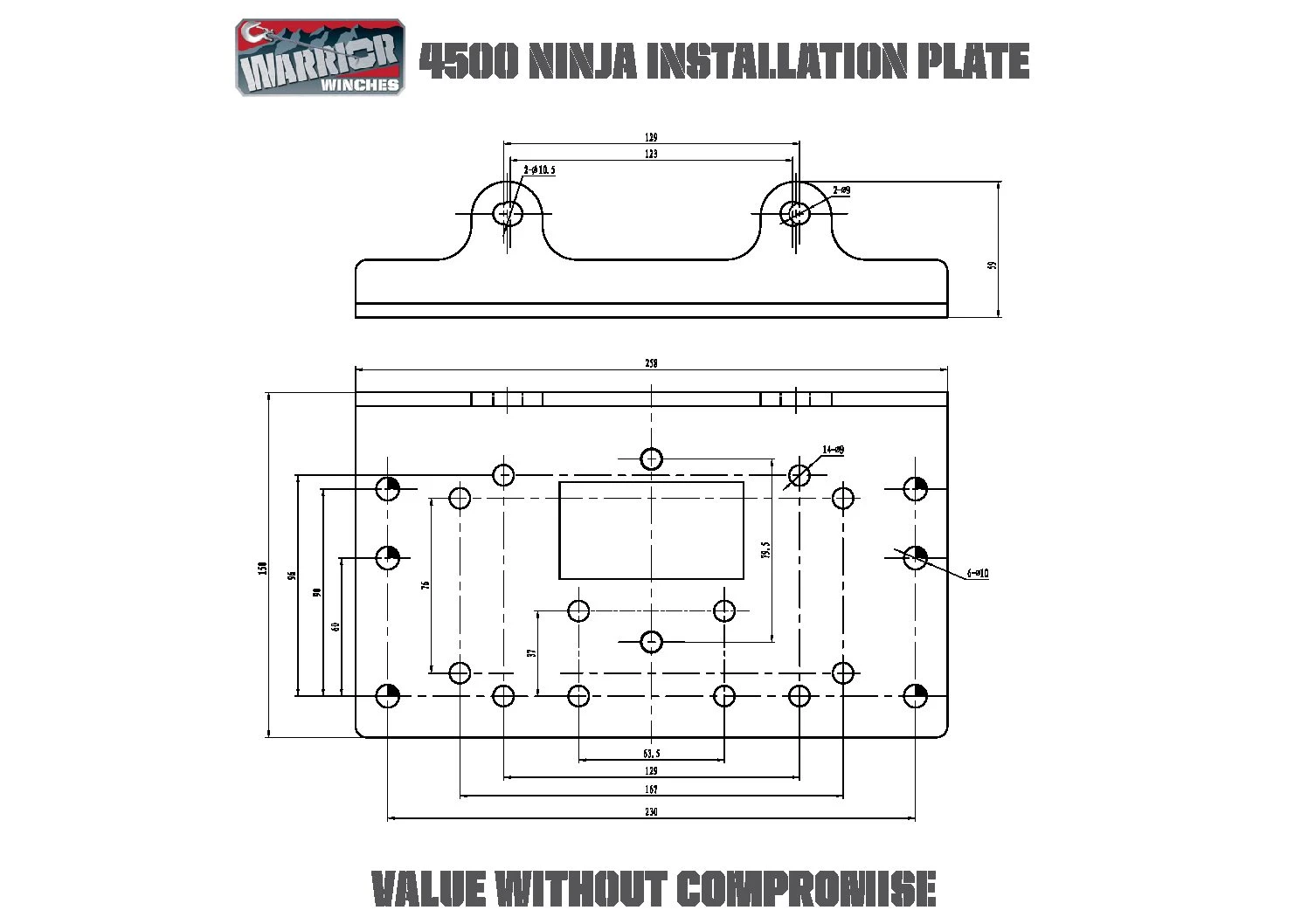

Click here for Installation Plate

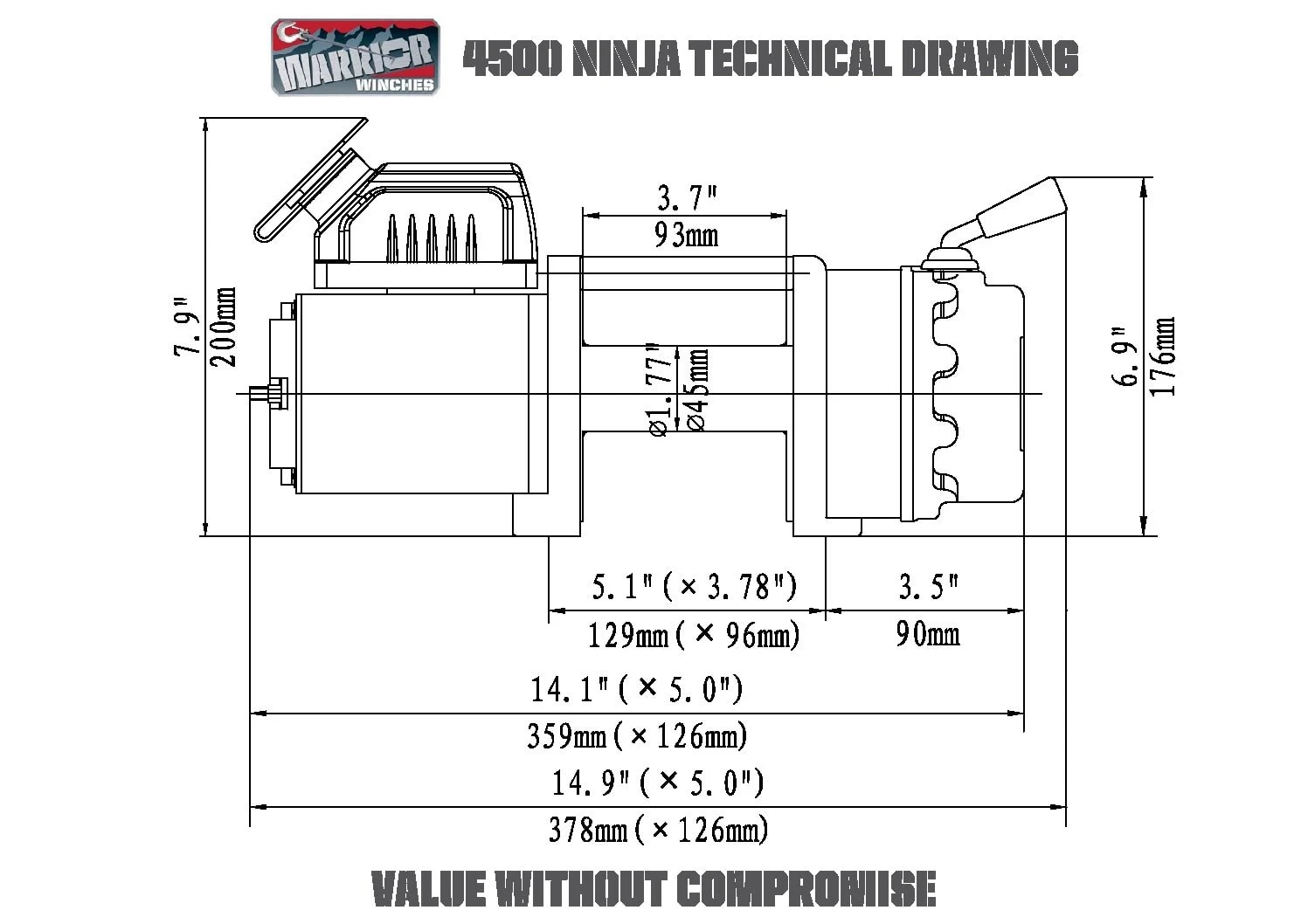

Click here for Technical Diagram

Click here for User Manual

ACCESSORIES INCLUDED

•


  1/4 Hook

•


  3m Ninja Wired Remote Handset

•


  Aluminium Fairlead

•


  Heavy Duty Battery Leads

•


  Mounting Hardware

•


  Mounting Tray

•


  Synthetic Rope 6mm x 15m
